DRV8412DDWR
Manufacturer:
Texas Instruments
Mfr.Part #:
DRV8412DDWR
Datasheet:
Description:

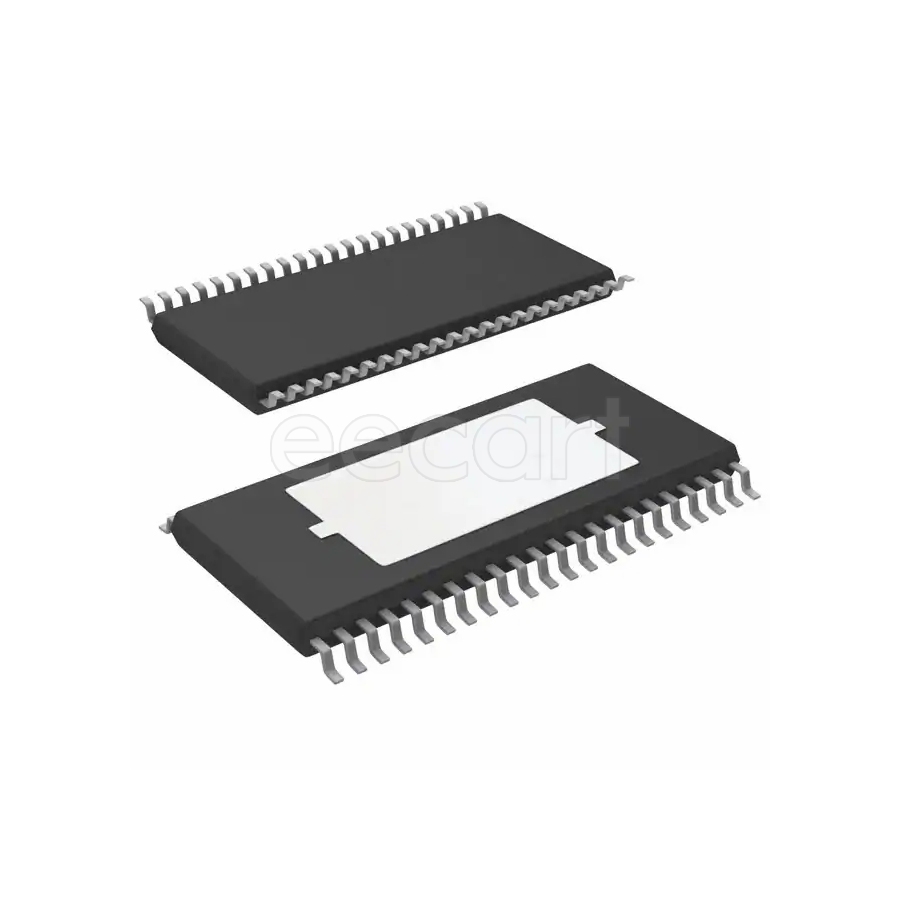

Motor Drivers HTSSOP-44 SMD/SMT PWM Load voltage:0 V to 52.5 V Half Bridge (4)
| Parameter | Value |
|---|---|
| Length | 14 mm |
| Width | 6.1 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 44 |
| Height | 1.2 mm |
| Packaging | Reel |
| Thickness | 1.5 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Frequency | 500 kHz |
| Interface | PWM |
| Output Current | 14 A |
| Output Voltage | 200 mV |
| Operating Supply Voltage | 50 V |
| Lifecycle Status | Active |
| Max Supply Voltage | 52.5 V |
| Min Supply Voltage | 0 V |
| Max Output Current | 6 A |
| Operating Supply Current | 9 mA |
| Output Configuration | Half Bridge (4) |
| Number of Outputs | 2 |
| Nominal Supply Current | 9 mA |
| Output Current per Channel | 3 A |
| Fault Protection | Over Temperature, Short Circuit |
| Chemistry/Technology | Power MOSFET |
| Applications | DC Motors, Stepper Motors |
| Load Voltage | 0 V to 52.5 V |
Stock: 28
Distributors
pcbx
pcbxUnit Price$4.13117
Ext.Price$4.13117
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $4.13117 | $4.13117 |
| 10 | $3.48346 | $34.83460 |
| 25 | $3.21376 | $80.34400 |
| 50 | $2.96494 | $148.24700 |
| 100 | $2.73540 | $273.54000 |
| 300 | $2.64285 | $792.85500 |
| 500 | $2.55343 | $1276.71500 |
| 1000 | $2.47088 | $2470.88000 |
